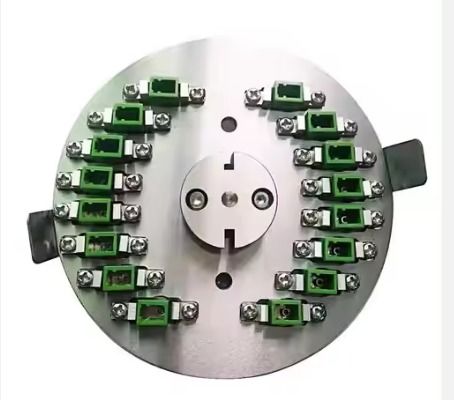

16 Port LC/APC Fiber Optic Polishing Jig with 100% First Pass Yield and 0.20dB Insertion Loss for High Efficiency Polishing

1
MOQ
$218.52-236.45
가격
16 Port LC/APC Fiber Optic Polishing Jig with 100% First Pass Yield and 0.20dB Insertion Loss for High Efficiency Polishing
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
순 중량: 0.5kg
재료: 스테인레스 강을 경화하세요
치수: 110*5mm
섬유의 수: 16
3D 합격률: 100%
삽입 손실: ≤0.20dB
반사 손실 PC: ≥55dB
반사 손실 APC: ≥60db
커넥터 유형: SC,FC,LC,ST(PC/APC)
연마기 종류: 센터 압력 폴란드어 기계
섬유심의 수: 16
모델: LC/APC, LC/UPC
페럴 단면 품질: 100% 1차 통과 수율
열처리: 예
주기당 최대 페룰: 16
강조하다:

16 Port Polishing Jig

,

100% First Pass Yield Polishing Fixture

,

0.20dB Insertion Loss Fiber Optic Polishing Jig
기본 정보
원래 장소: 광동, 중국
브랜드 이름: Chuanglixun
모델 번호: LC/APC
결제 및 배송 조건
제품 설명
LC-APC-12 Fiber Optic Cable Polishing Jig For Fiber Cable Fiber Optic Polishing Fixture
Efficient and durable fiber optic 16 port LC APC polish jig optical fiber polishing fixture for patch cord manufacture.
Product Description
This fiber polishing fixture/jig offers high stability and excellent surface quality. Manufactured from high-quality heat-treated steel (hardened steel S2316) for extended service life. Available in various connector types including SC, FC, ST, and LC, with custom configurations available upon request.
Key Features
  • Designed specifically for LC/APC(UPC) connector polishing
  • Easy jig changing with simple, flexible operation
  • High efficiency - polishes up to 16 ferrules simultaneously
  • Produces excellent ferrule end-face polishing quality
  • Polished ferrule dimensions comply with IEC standards
  • 100% first pass yield for end face quality
  • Constructed from heat-treated stainless steel for precision and durability
  • Custom ferrule grinding designs and services available
Technical Specifications
Model LC/APC, LC/UPC
Net Weight 0.5kg
Compatible Connector Types SC, FC, LC, ST (PC/APC)
Polishing Machine Type Center Pressure Polish Machine
Number of Fiber Cores 16
Material Hardened Stainless Steel
Insertion Loss ≤0.20dB
Return Loss ≥55dB (PC), ≥60dB (APC)
Warranty Period 2 Years
Product Images
16 Port LC/APC Fiber Optic Polishing Jig with 100% First Pass Yield and 0.20dB Insertion Loss for High Efficiency Polishing 0 16 Port LC/APC Fiber Optic Polishing Jig with 100% First Pass Yield and 0.20dB Insertion Loss for High Efficiency Polishing 1 16 Port LC/APC Fiber Optic Polishing Jig with 100% First Pass Yield and 0.20dB Insertion Loss for High Efficiency Polishing 2 16 Port LC/APC Fiber Optic Polishing Jig with 100% First Pass Yield and 0.20dB Insertion Loss for High Efficiency Polishing 3
Shipping Information
We typically ship via DHL, FedEx, UPS, EMS, TNT or Sea freight. You may provide your courier account for us to select the most cost-effective shipping method based on order quantity.
16 Port LC/APC Fiber Optic Polishing Jig with 100% First Pass Yield and 0.20dB Insertion Loss for High Efficiency Polishing 4
Frequently Asked Questions
Are you a factory or a trader?
We are the manufacturer.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, samples are available.
How will you ship to me?
Shipping typically takes 4-6 days via DHL or FedEx, depending on order quantity.
How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
2-year warranty covering free repairs (excluding consumables). After warranty period, we continue to provide replacement parts at cost.
Do you provide customized services?
Yes, we offer custom solutions based on customer requirements.
