High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98%

1
MOQ
$149.12-168.25
가격
High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98%
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
순 중량: 0.5kg
재료: 스테인레스 강을 경화하세요
크기: 110*5mm
섬유의 수: 12
3D 합격률: ≥98%
삽입 손실: ≤0.20dB
반사 손실 PC: ≥55dB
반사 손실 APC: ≥60db
커넥터 유형: SC,FC,LC,ST,MU,E2000(PC/APC)
연마기 종류: 센터 압력 폴란드어 기계
섬유심의 수: 12
IPC 구조: 각 커넥터의 독립적인 압축
강철 유형: 경화강 S2316
첫 번째 통과 수율: 100%
간섭율: ≥98%
강조하다:

12 Port Polishing Fixture

,

110*5mm Fiber Optic Polishing Jig

,

3D Pass Rate ≥98% Polishing Plate
기본 정보
원래 장소: 광동, 중국
브랜드 이름: chuanglixun
모델 번호: ST/PC
결제 및 배송 조건
제품 설명

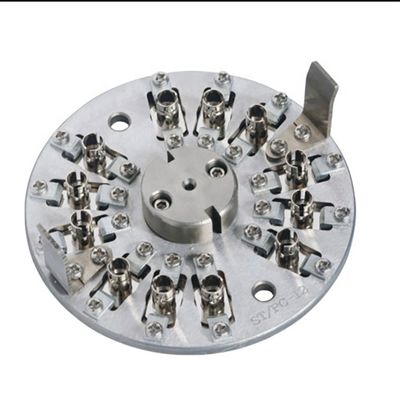

Factory Direct Sales High Efficiency ST UPC 12 Port Optical Fiber Cable Connector Polishing Plate Fixture

This high-efficiency fiber polishing fixture features an IPC structure with independent compression for each connector. With a pass rate of ≥98% (typically 100% according to IEC standards), it delivers exceptional stability and surface quality for optical fiber connectors.

Key Features
  • Designed for ST/PC and ST/UPC connector polishing
  • High efficiency - polishes 12 ferrules in one cycle
  • Replaceable holders for cost-effective polishing
  • Complies with IEC standards for geometry dimensions
  • 100% first pass yield for end face quality
Technical Specifications
Model ST/PC, ST/UPC
Net Weight 0.5kg
Connector Type SC, FC, LC, ST, MU, E2000 (PC/APC)

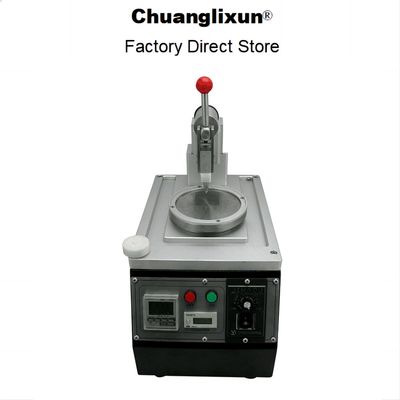

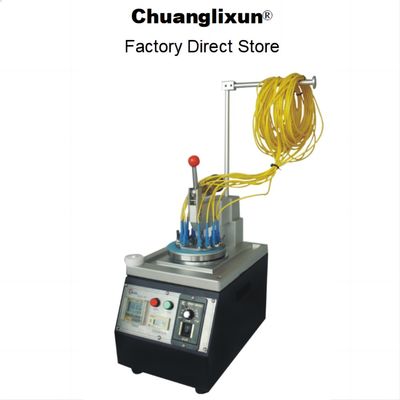

Polishing Machine Type Center Pressure Polish Machine
Number of Fiber Cores 12
Material Hardened stainless steel
Insertion Loss ≤0.20dB
Return Loss ≥55dB (PC), ≥60dB (APC)
Warranty 24 months
Product Gallery
High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 0 High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 1 High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 2

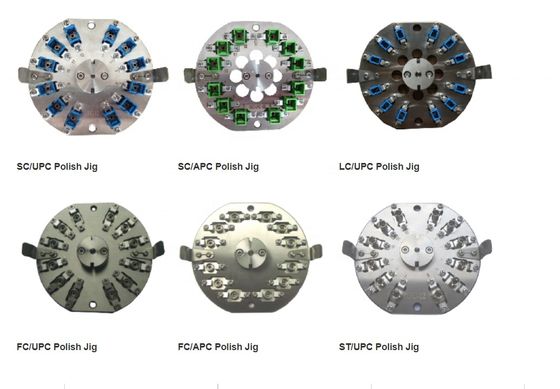

Available Models
High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 3 High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 4 High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 5
Frequently Asked Questions
Are you a factory or a trader?
We are the factory.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We ship via DHL or FedEx in 4-6 days (may vary based on order quantity).
How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty (free repairs except for consumables). After warranty, we provide cost-based replacement parts.
Do you provide customized services?
Yes, we offer customization according to customer requirements.
