홈 /제품 소개/광택 처리 고정대/24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes

24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes

1
MOQ
$210.23-230.51
가격
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
유형: 광섬유 닦기 칩
재료: 스테인레스 스틸
커넥터 유형: FC UPC 커넥터
크기: 174*174*26mm
페룰 직경: 2.50 밀리미터
순 중량: 1.2KGS
총 체중: 2.0 KGS
섬유의 수: 24개 포지션
삽입 손실: ≤0.20dB
반환 손실: ≥60dB(APC)
끝면: PC
용량: 24개 포지션
곡률 반경: 5-25mm
정점 오프셋: 0-50μm
섬유 높이: -100~+50μm
강조하다:

High Stability Polishing Fixture

,

Good Surface Quality Fiber Optic Polishing Jig

,

Easy to Change Jigs Fiber Polishing Holder
기본 정보
원래 장소: 광동, 중국
브랜드 이름: Chuanglixun
인증: ce
모델 번호: FC-UPC-24, FC/UPC-24, FC/UPC
결제 및 배송 조건
제품 설명

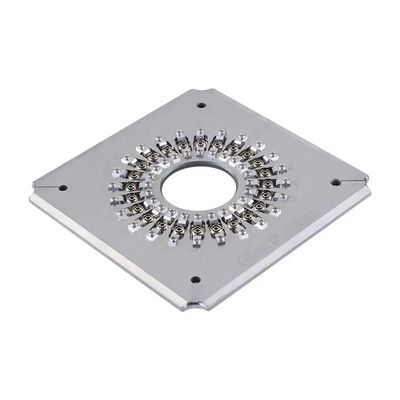

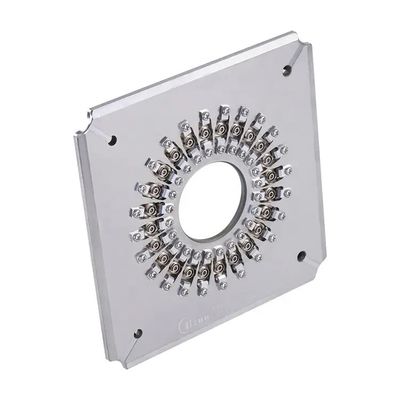

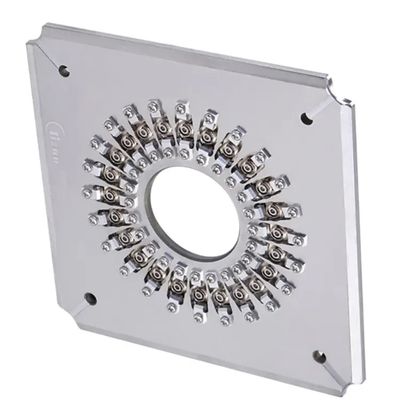

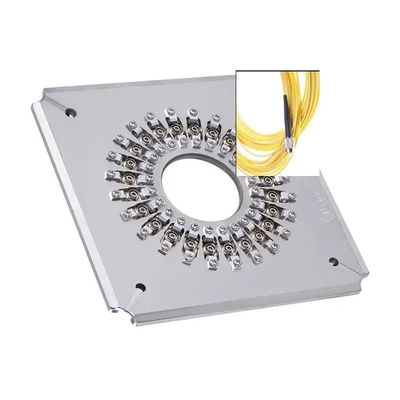

Fiber Optic Polishing Plate Holder Fixture 24 Port FC UPC Fiber Optic Connector Polishing Fixture
This high-stability fiber polishing fixture delivers excellent surface quality for FC/PC connectors. Constructed from heat-treated hardened steel (S2316) for extended service life, it supports various connector types including SC, FC, ST, and LC configurations.
Key Features
  • Designed specifically for FC/PC connectors
  • Simple jig changing mechanism for flexible operation
  • High efficiency - polishes 24, 32, or 36 connectors per cycle
  • 98-100% first pass yield for end face quality
  • IPC structure with independent compression for each connector
  • PC return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life
Specifications
Model FC-PC-24 FC-PC-32 FC-PC-36
Brand CLX CLX CLX
Connector Type FC PC FC PC FC PC
End-face PC PC PC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 32 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥55dB (PC) ≥55dB (PC) ≥55dB (PC)
Application Polishing assembled FC PC connectors
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.5 kgs / 2.0 kgs
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 0 24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 1 24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 2
Polishing Effect
Polished Connector Ferrule Faces
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 3
High-quality end-face polishing with no white spots or scratches. Fiber edge is clearly visible for optimal performance.
ILRL Test Result
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 4
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥60dB ≥30dB
Geometry Test Result
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 5
NO. Parameters UPC Criterion APC Criterion
1. Radius of Curvature 5-25mm 5-12mm
2. Apex Offset 0-50μm 0-50μm
3. Fiber Height -100~+50μm -100~+50μm
4. Angle n/a 8.00+/-0.50°
About Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.
Established in 2010, we are an optical communications equipment company specializing in research, development, production, and technical services. We provide high-quality products, excellent after-sales service, and free technical support for fiber optic connector production challenges.
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 6 24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 7
Frequently Asked Questions
1. Are you a factory or a trader?
We are a factory.
2. What is your MOQ?
Minimum order quantity is 1 piece.
3. Do you provide sample services?
Yes, we provide samples.
4. How will you ship to me?
We ship via DHL or FedEx in 4-6 days. Shipping time may vary based on order quantity.
5. How do we pay?
We accept multiple payment methods including T/T and T/L.
6. How long is your product warranty?
1-year warranty (free repairs except for consumables). After warranty, we provide cost-price accessories.
7. Do you provide customized services?
Yes, we offer customization based on customer requirements.
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 8 24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 9
Get a free Quotation via Us >>> GO
