High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station

1
MOQ
$798.23-869.15
가격
High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
측정 범위: +3 ~ -75dBm
해결: ±0.3dB
작동 온도: +10℃ ~ +50℃
광원 파장: MM:850nm/1300nm SM:1310/1550/650,850 1310/14
무게: 3kg
파장: 1310/1550NM
광 커넥터: FC / 자동 위상 조정
반사 특성 범위: 14.8 ~ 75dB
레이저 안정성: 0.05dB(1시간@25°C)
측정 정확도: 0.25dB
파장 범위: 800~1700nm
교정된 파장: 850/1300/1310/1550nm
광검출기: 잉 가아스
디스플레이 모드: dBm/dB/xW
치수: 360x240x130mm
강조하다:

14.8 ~ 75dB Return Loss Measurement Range Fiber Optic Test Station

,

0.25dB Measurement Accuracy Insertion Return Loss Tester

,

±0.3dB Resolution IL & RL Tester
기본 정보
원래 장소: 중국 광둥
브랜드 이름: chuanglixun
모델 번호: CLX-CH03, CLX-CH03
결제 및 배송 조건
제품 설명

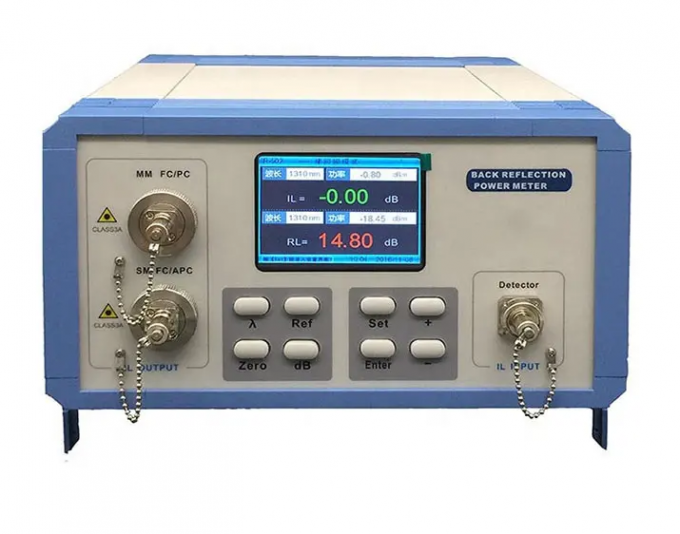

CLX-CH03 Fiber Optic Patchcords IL&RL Test Station Insertion Loss Return Loss Tester
High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 0 High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 1
Insertion Return Loss Tester
The CLX-CH03 is designed for precise measurement of insertion loss and return loss in fiber optic connections. Its applications include:
  • Testing pigtails and patch cords
  • Optical connections in communication equipment rooms and distribution frames
  • Optical connections in various apparatus and equipment
Key Features
  • High measurement accuracy
  • Synchronously auto-setting wavelength
  • Multiple working modes
  • User-friendly operation
  • Ergonomic design
  • Universal optical connector with easy cleaning
  • USB connectivity
High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 2 High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 3 High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 4
Technical Specifications
Parameter Value
Product Name Insertion and Return Loss test Station
Wavelength 1310/1550nm
Optic Connector FC/APC
Return Loss measurement Range 14.8 ~ 75dB
Output Stability of laser source 0.05dB(1 hour@25°C)
Measurement accuracy 0.25dB
Resolution ±0.3dB
Wavelength Range 800~1700nm
Calibrated wavelength 850/1300/1310/1550nm (others optional)
Optic Connector (Power Meter) Interchangeable FC/SC/ST/2.5mm Universal /1.25mm adaptors
Photo detector InGaAs
Display modes dBm/dB/xW
Communication Port USB
Dimensions 360×240×130mm
Weight 2.8kg
High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 5 High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 6

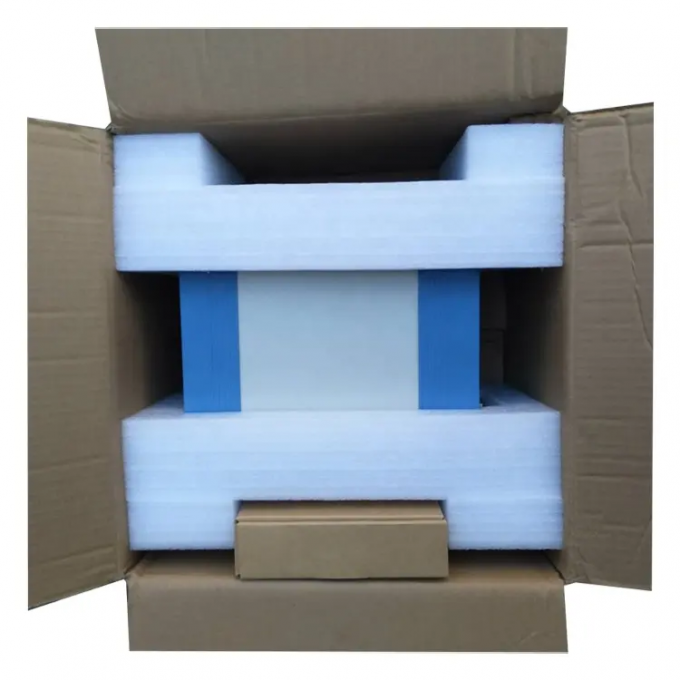

Shipping Information
We ship worldwide using major carriers including DHL, FEDEX, UPS, EMS, TNT or by sea. You may provide your courier account for optimized shipping costs.
High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 7
Frequently Asked Questions
Are you a factory or a trader?
We are the manufacturer.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
Standard shipping takes 4-6 days via DHL or FedEx. Delivery time may vary based on order quantity.
How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
1 year warranty (free repairs except for consumables). After warranty period, cost-based support continues.
Do you provide customized services?
Yes, we offer customization based on customer requirements.
High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 8 High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 9
